3D illuminated letters are built-up letters with LED lighting fitted inside or behind them, so your name, branding or signage stays visible after dark.
For small-to-mid-size businesses in the UK and internationally, from retail and hospitality to legal, finance, property and corporate offices, the right choice depends on how the letters are built, where the light needs to fall, what they cost, and the wall or surface they are fixed to.
Common uses for 3D illuminated letters include commercial shopfronts, corporate branding and reception areas, where stronger day-and-night visibility can sharpen first impressions and help a business stand out.
You will see 3D illuminated letters on shop fronts along Market Street, on office façades at Salford Quays and behind reception desks across Manchester and the wider UK. The key details we cover in this blog are letter construction and materials, lighting options and specifications, installation and maintenance, and which style best fits the space and the brand.

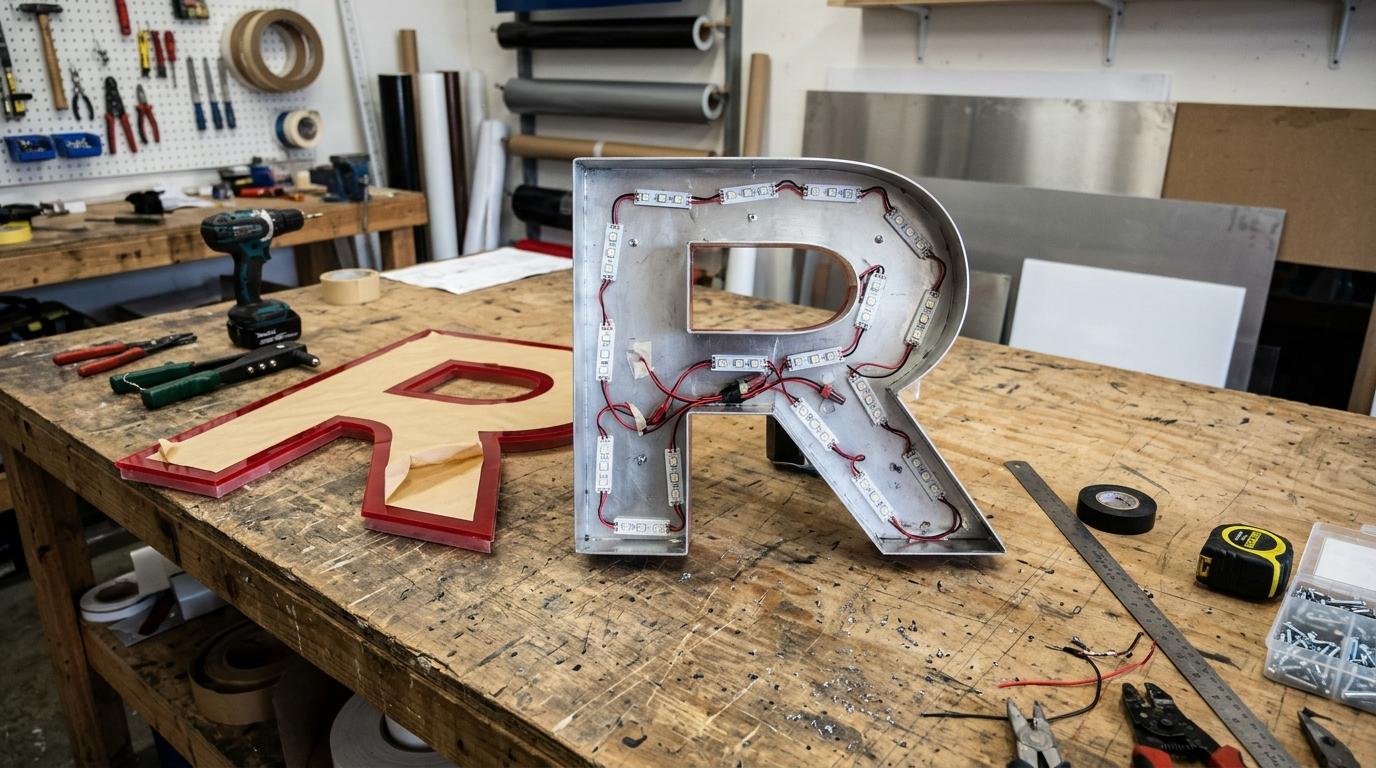

How Are 3D Illuminated Letters Constructed?
Each letter is a hollow fabricated box with an LED light source inside. At Manchester Signs Centre, our letters are designed, manufactured and installed in-house by our Greater Manchester team, so construction details are controlled from drawing to fitting.
If you are still weighing up lettering types, our guide to 3D built-up letters vs flat cut lettering covers the wider comparison.
Letter Faces, Returns and Backs
-
Face: the front panel you read. On face illuminated letters it is translucent so light passes through.
-
Return: the side wall that sets the depth, usually 50 mm to 100 mm.
-
Back: the rear panel that carries the LED modules and fixing points.
Common Materials for Letter Faces and Sides
-
Faces are most often an acrylic face, typically opal or coloured, and can also be made to match supplied artwork or a logo.
-
Returns are commonly aluminium, with stainless steel for premium finishes.
-
Fully illuminated signs use premium acrylic for maximum visibility.
-
Polystyrene letters are cost-effective for temporary signage solutions.
How Depth and Fabrication Affect the Illuminated Signs
Deeper returns give stronger shadow lines and more visual impact, but they need more LED modules to avoid hot spots. Precision cut faces and neat welded joints keep edges crisp, and return colours can be matched to your brand. Letters can also be fabricated in custom shapes where the design calls for it. Finishes are available in either gloss or a matt finish.
Which Lighting Options Are Available for 3D Letters?
There are three main approaches, each with a different lighting direction. For a fuller side-by-side view, see our halo lit vs face lit letters guide.
Face-Lit Letters: Direct Light Through the Letter Face
Face illuminated letters provide high brightness with low power consumption. LED modules sit behind a translucent acrylic face, so the whole letter glows while staying bright, efficient, and low maintenance. This gives fully illuminated, eye catching letters that read well at distance.
Halo-Lit Letters: Light Reflected Onto the Mounting Surface
The face is opaque and the back is sealed or partly open. Halo lit letters stand off the wall by roughly 20 mm to 30 mm, and the LEDs throw a soft glow around the outline. They suit smooth, light-coloured walls.
Rimless Illuminated Letters: Construction and Lighting Design
Rimless letters have no visible metal edge. The acrylic face is bonded straight to the sides, so the whole letter appears to be one piece of light. The build needs tighter tolerances and more even LED spacing.
Side-lit letters can also be used that leak illumination through the edges for a stylised outline.
Choosing Lighting Based on Visibility, Background and Brand Appearance
Please note, always choose the right type of 3d illuminated letters based on your branding needs.
-
Busy high streets: face-lit gives the strongest daytime and night-time presence.
-
Dark brick or stone: halo-lit is subtle but needs a surface that reflects light.
-
Premium brands: rimless or combined face and halo lighting suits a refined look.
For more on after-dark performance by professional signage, read our night visibility signage guide.
What Materials Are Used in Illuminated 3D Letters?
No single material is best for every site. Suitability depends on exposure, mounting options, finish and budget.
Acrylic Faces and Diffusers
Opal acrylic spreads light evenly and takes sign vinyl well for a specific colour effect. It is lightweight and easy to cut, though it can scratch if cleaned with abrasive cloths.
Aluminium and Fabricated Metal Returns
Aluminium letters resist corrosion, can be powder-coated or painted in any RAL colour, and keep weight manageable on lighter walls. They are a popular choice for outdoor use.
Stainless Steel and Premium Metal Finishes
Brushed or polished stainless steel, and brass or bronze effects, give a high-end look. They cost more to fabricate and polished finishes show fingerprints, so they suit reception areas and entrances well.
Choosing Materials for Outdoor Exposure and Indoor Applications
-
Outdoor: powder-coated aluminium or stainless steel with UV-stable acrylic. See our guide to the best materials for outdoor weatherproof signage.
-
Indoor: acrylic, painted aluminium or polished metals, with fewer weather demands.
LED Specifications to Consider Before Ordering
LED lighting lasts over 50,000 hours when highest standards are chosen. The right specification of LED signs depends on letter depth, face material, viewing distance and the installation environment.
LED Module Placement and Light Distribution
Shallow letters need more closely spaced LED modules to avoid visible dots. Deeper letters allow wider spacing and more even light across the acrylic face.
Brightness, Colour Temperature and Colour Consistency
Choose a colour temperature to suit your brand, such as warm white, cool white or specific LED colours. Ask for batch-matched modules so every letter looks identical. LED lighting also has low power consumption and is energy efficient compared with older neon.
Power Supplies, Access and Serviceability
Each run needs a suitable power supply, usually a low-voltage driver sized with spare capacity. Mount it where it can be reached, and keep the letters themselves accessible for service.
Weather Protection for Outdoor Installations
Outdoor letters need sealed modules and weatherproof connectors, with drain holes to avoid condensation. Ask for the IP rating of the LED components, not just the finished sign.

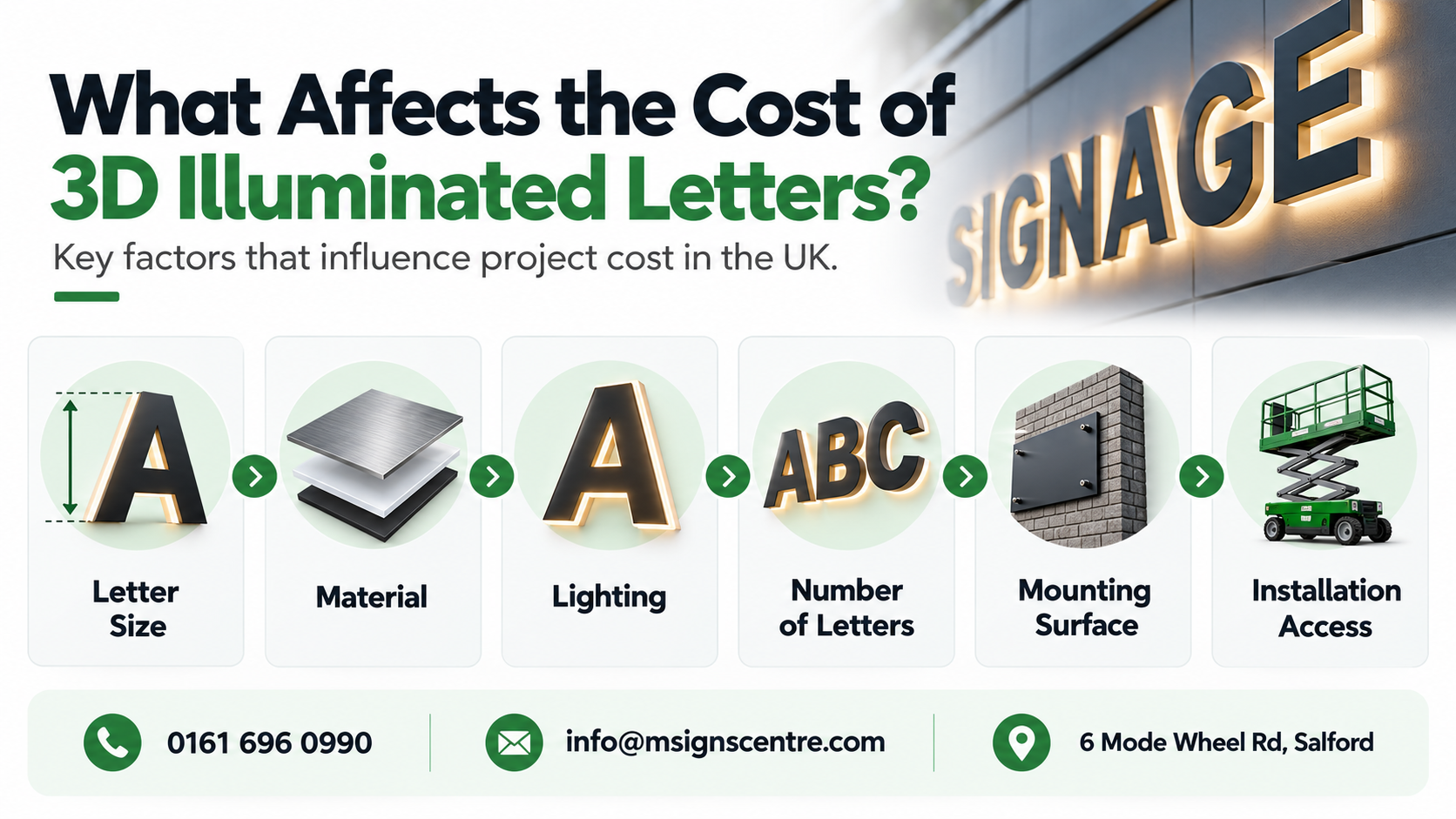

How Much Do 3D Illuminated Letters Cost in the UK?
Prices vary too widely for a reliable figure, so we quote per project rather than publish a range. For general pricing context, see our guides to business signage cost in the UK.
Material, Letter Size and Fabrication Complexity
Larger letters, deeper returns, stainless steel and rimless construction all add fabrication time and cost.
Lighting Configuration and Electrical Components
Combined face and halo lighting uses more LED modules and drivers than a single method. Dimming or timers add further components.
Number of Letters, Mounting Method and Installation Access
More letters mean more fixing time. High-level work may need access equipment, and signs may be mounted to masonry, cladding or glazing, with each surface calling for different fixings.
Design, Installation and Ongoing Maintenance Costs
At Manchester Signs Centre we offer free design, free site visits and no-obligation quotes, so you can see the full cost before committing. Allow for occasional cleaning and any component replacement over the sign’s life.
Installation and Maintenance Considerations
Installation requires a degree of skill but includes clear instructions. Plan the electrics and access early. For a worked example of fitting, see our illuminated shop sign installation case study.
Wall Condition, Fixings and Mounting Templates
3D letters can be supplied with stud mounting or adhesive bonding, depending on the site. Surveyed walls, correct fixings and a paper mounting template keep spacing accurate.
-
Flush mounting is best for even surfaces for a sleek appearance.
-
Standoff mounting adds depth for uneven surfaces during installation.
The best fixing method depends on the wall surface, the appearance required, and installation needs. Weak or damp substrates may need extra preparation.
Electrical Connections and Access for Servicing
Cable routes, isolators and driver locations should be agreed before fabrication. Hidden but reachable drivers make later servicing far simpler.
Illuminated signs can need approval even when the same sign unlit would not. The Planning Portal explains that advertisement consent may be needed for illuminated adverts of any size.
Cleaning, Inspection and Troubleshooting
-
Wipe faces with a soft cloth and mild detergent.
-
Check for dark patches, flicker or moisture twice a year.
-
Switch off power before any inspection.
When Components May Need Repair or Replacement
LED modules and drivers are the parts most likely to need replacing, usually after many years of use. Well-built letters need minimal maintenance, and swapping a module is far cheaper than replacing the sign.
How to Choose the Right 3D Illuminated Letters
Mostly illuminated signage options are fully customisable, so, you should choose an option according to your business needs and design requirements.
For Shop Fronts and External Building Signage
Prioritise weather protection, brightness and legibility from the pavement. Face-lit aluminium letters are a common route, and our illuminated vs non illuminated 3D letters page helps you decide whether lighting is worth it.
For Reception Areas and Internal Branding
Indoors, finish and detail matter more than weather resistance.
-
Brushed metal or acrylic with halo lighting works well on feature walls in reception areas, offices and healthcare settings.
-
Events like weddings often use decorative marquee letters as focal points.
-
Home decor utilises smaller battery-powered or plug-in 3D letters for accent lighting.
Questions to Ask Your Sign Manufacturer Before Ordering
-
What are the return depth and face material?
-
What is the IP rating of the LED modules and driver?
-
Where will the power supply sit, and can it be reached?
-
What fixings suit my wall?
-
How will you install the letters, and can you handle the fitting?
-
Is advertisement consent likely to be needed?
Specification checklist:
-
Dimensions: letter height, depth and total width.
-
Lighting style: face-lit, halo-lit or rimless.
-
Material: acrylic, aluminium or stainless steel.
-
Mounting surface: brick, render, cladding or glass.
-
Electrical access: driver position and cable route.
-
Budget: a target figure to share for your quote.
Specifying Your Letters With Manchester Signs Centre
Our services below fit most illuminated lettering projects, all made in our Salford workshop and installed across the UK. We create:
-
3D Built-Up Letters: fabricated letters and logos in aluminium, stainless steel and acrylic, with lighting built in.
-
Reception Signs: backlit logos and lettering for interior feature walls and entrances.
-
Outdoor Signs: weatherproof exterior signage for shops, offices and sites where letters need to cope with the elements.
Frequently Asked Questions
What are 3D illuminated letters?
They are fabricated letters with depth and built-in LED lighting. The light shines through the face, around the edge, or both.
What is the difference between face-lit and halo-lit letters?
Face-lit letters glow through a translucent front. Halo-lit letters have an opaque front and cast light onto the wall behind.
Which materials are used for illuminated 3D letters?
Acrylic faces with aluminium or stainless steel returns are the most common. The best choice depends on exposure and finish.
How much do illuminated letters cost in the UK?
It depends on size, material, lighting and installation access. We, at Manchester Signs Centre, provide a free, no-obligation quote and suggest different styles based on your project.
How long do LED illuminated letters last?
Quality LED modules typically last many years, though long lifespan depends on the quality of components and conditions. Drivers may be replaced sooner than the letters.
Can 3D illuminated letters be used outdoors?
Yes, provided they use sealed LED modules, weatherproof connectors and durable materials such as powder-coated aluminium.
